Understanding plumbing system anatomy
A residential plumbing system has three main parts: the water supply, the drain-waste-vent (DWV) system, and the hot water delivery system. These subsystems share space and trade-offs — for example, where you route supply lines affects where you can run vent stacks and drain grades.
Water supply delivers potable water under pressure to fixtures and appliances. The DWV system relies on gravity and atmospheric pressure to move wastewater out and prevent sewer gases from entering living spaces. Hot water delivery sits on top of the supply system and includes the water heater, possible recirculation, and safety devices.
Understanding how these pieces interact is the first step toward practical planning. Good design minimizes conflicts with framing and HVAC, reduces unnecessary fittings, and makes maintenance straightforward.
Water supply basics: pressure, sizing, and layout
Municipal water usually arrives between 40 and 80 psi; many designers target 50–60 psi at the fixtures for comfort and appliance longevity. Excessive pressure can damage fixtures, so pressure-reducing valves are standard in areas with high municipal pressure.
Pipe sizing is driven by fixture demand and length of run. Plumbing codes use fixture unit tables to convert varied fixture demands into a water supply load that defines mains and branch sizes. For small homes, a 3/4-inch incoming main often suffices, with 1/2-inch branches to individual fixtures; larger homes or long runs may require 1-inch or larger mains.
Plan the layout to limit long runs and unnecessary fittings. A compact manifold or “home run” layout using PEX gives excellent performance, reduces pressure loss, and simplifies shutoffs for each fixture. I installed a home-run PEX manifold in a remodel and avoided half a dozen soldered joints; the homeowner loved the quiet and the easy shutoffs.
Materials for supply lines: copper, PEX, CPVC
Copper has a long track record, excellent durability, and high-temperature tolerance. It requires soldering or mechanical fittings and reacts to aggressive water chemistry in some areas. Copper can be a good choice for visible or exposed runs where appearance matters.
PEX tubing has become the default for many builders because it’s flexible, fast to install, and resists scale and corrosion. PEX connections use crimp, clamp, or press fittings and permit long continuous runs through framing, which reduces joints and leak risk. Ensure PEX is rated for potable water and protected where exposed to sunlight.
CPVC is a plastic option with higher temperature tolerance than standard PVC. It uses solvent-welded joints and is often chosen for hot water branches in retrofit work where handling PEX is inconvenient. Each material has pros and cons; local code and contractor familiarity usually guide the selection.
Valves, shutoffs, and isolation
Each fixture should have an accessible shutoff valve to allow individual repairs without shutting off the house. Ball valves provide straightforward, durable isolation and are available in full-bore sizes that minimize pressure drop. Quarter-turn shutoffs under sinks and behind toilets are inexpensive insurance against water damage.
Install a main shutoff near the point of entry so water can be stopped quickly in an emergency. Consider a smart leak-detection system or an automatic shutoff valve for vacation homes or prolonged absences; I recommended one for an out-of-state client and it stopped a slow leak that would otherwise have flooded a finished basement.
Pressure-reducing valves, backflow preventers, and thermal expansion tanks are additional components to include based on supply conditions and appliance needs. Document location of these items for the homeowner and inspector.
Drain-waste-vent (DWV) fundamentals
Wastewater moves by gravity through properly sized and sloped drains to the building sewer. Vents allow air into the system so traps don’t siphon dry and sewer gases remain outside the living space. A well-designed DWV system balances slope, trap placement, and venting to maintain function over time.
Traps (typically P-traps under sinks) hold water to block sewer gas. Each fixture requires a trap located within specified distances from the fixture to the vent, called trap arm limits. If a trap is too far from a vent, it risks siphoning and odors.
Proper venting prevents slow drainage and gurgling. Common vent configurations include individual vents, common vents for two fixtures, and circuit vents that serve a group of fixtures. Local code will accept certain options and forbid others — consult code tables or an experienced plumber.
Slope and pitch for drain lines
A common rule of thumb is 1/4 inch per foot slope for most drain pipes up to 3 inches in diameter. Larger drains often use 1/8 inch per foot, but always verify local code. Too little slope allows solids to settle; too much slope can cause liquids to outrun solids, creating blockages.
Maintaining constant slope through changes in direction and under framing requires planning. Use long, gentle runs where possible, and avoid sags beneath joists. On a recent project, routing a kitchen drain beneath a deep floor cavity required an access panel for future cleaning — a small investment that paid off when a clog did occur.
Cleanouts and access
Place cleanouts at the base of stacks, at changes of direction greater than 45 degrees, and at regular intervals along long horizontal runs. Cleanouts make it possible to clear blockages without destructive access to finished surfaces.
Label concealed cleanout locations in a building plans booklet and provide access panels where cleanouts penetrate finished walls or floors. Inspectors often flag inaccessible cleanouts during rough-in inspections, so plan them early.
Fixture rough-in dimensions and layout
Accurate rough-in dimensions prevent costly rework. Typical toilet rough-in is 12 inches from finished wall to the closet flange center for residential installations; some toilets require 10 or 14 inches, so verify fixture specs before framing walls. Standard sink rough-in heights and stub-outs should be coordinated with cabinetry and finish trades.
Kitchen islands with sinks or dishwashers need careful routing for supply and drain. Island drains often require an island vent or an air admittance valve, and they typically demand waste elbows with adequate slope beneath the island. I once rerouted an island sink because the initial design left inadequate space for the trap and vent after cabinets were installed.
Provide clear documentation of rough-in heights and lateral locations for the framing and cabinetry subcontractors. A short coordination meeting can prevent weeks of delay and costly callbacks.
Typical rough-in table
Here are typical rough-in dimensions that illustrate common practice. Always confirm with fixture manufacturer instructions and local code before finalizing framing or cabinetry.
| Fixture | Typical rough-in location | Typical height (from finished floor) |
|---|---|---|
| Toilet | Center of closet flange 12″ from finished wall | N/A |
| Lavatory sink | Center of drain 18–20″ from side wall | 30–34″ |
| Kitchen sink | Center of drain per cabinet layout | 34–36″ |
| Shower/tub drain | Centered in pan or per manufacturer’s spec | Floor level (drain below finish) |
Hot water systems: tanks, tankless, and distribution
Choosing between tank and tankless water heaters depends on the household’s peak demand, space, energy priorities, and budget. Storage tanks are simple, reliable, and often less costly up front. Tankless units save energy by heating on demand but require larger gas lines or electrical service and thoughtful venting.
Measure peak hour demand to size a tank properly: a family of four often falls in the 40–50 gallon range, though habits and appliances change that number. Tankless units are rated in gallons per minute (GPM); add expected simultaneous fixture flows to determine required capacity.
Distribution matters too. Long waits for hot water waste time and water. A recirculation loop or point-of-use heaters can deliver near-instant hot water in large homes. I persuaded a client to include a timer-controlled recirculation pump during design; the payoff in water savings and homeowner satisfaction was immediate.
Temperature and safety
Set water heaters to 120°F for general use to limit scald risk and reduce energy use. Some dishwashers require higher inlet temperature; when higher tank settings are used, install a tempering valve to deliver lower, safe temperatures at taps while allowing appliances to operate at design temperatures.
Anti-scald fixtures can further protect occupants. Pressure-balancing and thermostatic mixing valves are standard in many codes for showers in homes with young children or elderly residents. Check local code for explicit requirements.
Piping joints, fittings, and common connection methods
Soldered copper joints, crimped or press connectors for PEX, solvent-welded CPVC, and threaded or glued PVC all have place in modern residential work. Use the connection method rated for the pipe material and application, and employ proper techniques to ensure leak-free joints.
For buried or concealed connections, lean toward methods with long-term durability and proven performance, such as press fittings or properly crimped PEX. Mechanical fittings are useful in tight spaces or when disassembly may be needed, but they must be installed per manufacturer instructions.
Always keep spare fittings on site and label replacement parts for the homeowner. On one job, a rare-size adapter delayed completion; a small inventory of extras would have avoided that delay.

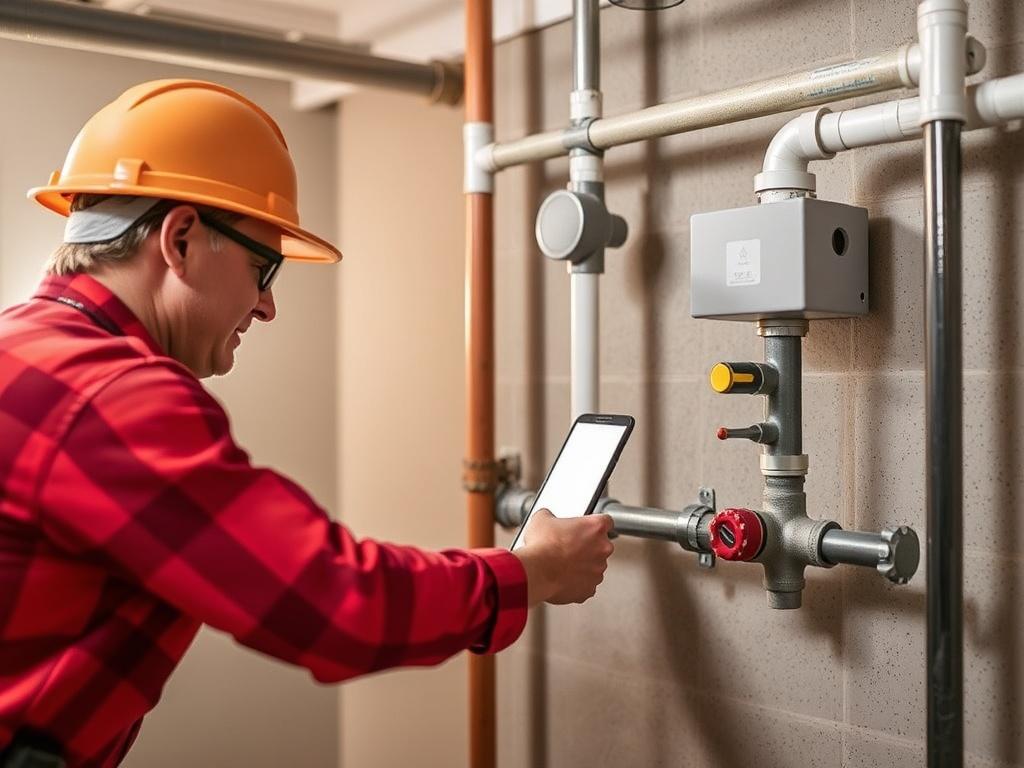

Testing, inspections, and commissioning
Before closing walls, test both the supply and DWV systems. Supply lines commonly undergo an air or hydrostatic test at code-specified pressures to reveal leaks. DWV systems use a water test or a smoke test in some jurisdictions to ensure integrity and proper venting.
Document tests and provide records to inspectors. Passing a rough-in inspection early avoids costly tile or drywall removals later. I always photograph test setups and retain pressure gauges’ readings for reference in case a dispute arises.
Commissioning includes running fixtures, checking for leaks at connections, verifying temperature controls, and ensuring appliances are connected per manufacturer instructions. Walk through the home with the owner to demonstrate shutoffs and maintenance items — that step reduces future service calls.
Insulation, freeze protection, and sound control
Insulate hot water lines to reduce standby heat loss and improve efficiency. In cold climates, insulating and heat-taping vulnerable lines prevents freezing, which can cause catastrophic damage. Consider routing critical supply lines in conditioned space where possible.
Soundproofing supply and drain lines near bedrooms reduces nighttime noise from bathrooms. Use resilient mounts, insulated sleeves where pipes pass through framing, and avoid rigid contact with studs that can transmit vibration.
For garages, crawlspaces, and exterior walls, protect lines against physical damage and temperature extremes with piping location, insulation, or heat trace where appropriate.
Water quality: treatment and protection
Water quality affects longevity of plumbing systems and appliances. Hard water increases scale buildup, while high chlorine can corrode certain metals. Test incoming water at the start of a project and recommend treatment where needed.
Whole-house filters, softeners, and UV sterilizers are common options. Backflow preventers protect potable water from cross-connections with irrigation systems or boilers. Install backflow protection per local code to prevent contamination risks.
In a coastal renovation I worked on, high chloride levels accelerated corrosion on copper fittings. Switching to PEX for hot water branches and adding a water softener eliminated ongoing corrosion issues and extended the life of appliances.
Common problems and troubleshooting
Clogs, leaks, slow drains, and pressure issues are common service calls. Clogs often stem from trapped solids; install hair strainers, proper trap seals, and educate occupants on what should not be flushed or poured down the drain. Leaks usually originate at joints or valves — good installation technique and quality fittings prevent many of them.
Air entrainment, gurgling, or slow drainage often point to venting problems. If fixtures gurgle when another drains, investigate shared vents and ensure vent size and location meet code. Pressure issues can be caused by undersized mains or shared loads; a pressure gauge at the meter tells the story quickly.
Regular maintenance — exercising shutoffs, checking for slow drips, flushing water heaters — prolongs system life. I advise clients to schedule a mid-winter and pre-summer check to catch issues related to temperature swings or seasonal use.
Coordination with other trades and framing considerations
Plumbing rarely operates in isolation. Coordinate with framers, electricians, HVAC technicians, and cabinetry installers to reserve space for stacks, supply runs, and appliances. Early coordination prevents cutting and patching later in the schedule.
Respect structural members: avoid weakening joists and studs when routing large drains. Use engineered solutions like nailing plates to protect pipes where screws or nails might penetrate, and consolidate penetrations to maintain insulation continuity and fire-stop effectiveness.
On a tight remodel, coordinating the plumbing below a new tub with the electrical chase for a nearby outlet saved a week of back-and-forth and prevented a design clash that would have required moving the tub enclosure.
Permits, codes, and documentation
Permits and inspections ensure work meets minimum safety and health standards. Codes evolve; the International Plumbing Code and the Uniform Plumbing Code are widely referenced, but local amendments prevail. Always check the local authority having jurisdiction before beginning work.
Maintain a job folder with permit paperwork, inspection reports, and as-built plumbing diagrams. Homeowners appreciate a simple map showing shutoffs, valve locations, and equipment manuals when the project is complete.
When in doubt, involve a licensed plumber or inspector. The cost of a call is small compared to repairing a failed system or redoing work that never passed inspection.
Tools, safety, and best practices on site
Essential tools include tubing cutters, pipe wrenches, press tools, soldering equipment, PEX crimp tools, inspection mirrors, and test gauges. PPE — gloves, eye protection, respirators when soldering or solvent-welding — keeps crews safe and productive.
Practice safe hot work procedures for soldering and brazing: protect combustible surfaces, have a fire extinguisher at hand, and follow local fire watch requirements. Electrical safety matters where pumps and heaters are installed — ensure circuits are de-energized for service and labeled properly.
Document a safety plan and toolbox talk for each site. A small investment in crew training reduces accidents and prevents costly delays.
Estimating costs and scheduling
Plumbing costs include materials, labor for rough-in and trim, fixtures, permits, and testing. Labor varies widely by region, complexity, and whether work is new construction or retrofit. Plan for contingencies when working in older homes where hidden conditions can surface once walls are opened.
Schedule plumbing rough-in after framing and before insulation, and trim-phase work after drywall and finishes are near completion. Coordinate equipment delivery (like water heaters) so installation occurs when connections and venting are ready but not earlier than necessary to avoid storage issues on site.
Get multiple bids if you are the owner; experienced contractors often see solutions less obvious to newcomers and can save money through better routing or material choices.
Sustainable and water-saving practices
Water-efficient fixtures, rainwater harvesting, and graywater systems reduce demand and environmental impact. Low-flow toilets, aerated faucets, and efficient showerheads save water without sacrificing comfort in most installations.
Graywater reuse for irrigation or toilet flushing requires careful design and often special permits; but in appropriate climates and with correct treatment, it can cut potable water use significantly. Consider tankless or heat-pump water heaters for energy savings over time.
Provide homeowners with simple usage and maintenance tips to maximize the benefits of sustainable systems. My clients respond well to clear payback examples — showing gallons saved or reduced energy bills helps justify higher initial costs.
Common code requirements you’ll likely encounter
Most jurisdictions demand backflow prevention on irrigation systems, accessible shutoffs at each fixture, proper venting, and approved materials for potable systems. Electric bonding of metal water pipes and seismic restraints for water heaters are also common requirements, depending on location.
Accessible cleanouts, correct trap distances to vents, and minimum slope for horizontal drains are among the frequently enforced DWV rules. Keep manufacturer installation instructions on-site, as inspectors often look for compliance with both code and manufacturer requirements.
When designing unique solutions — for example, a combined graywater system — engage the local plumbing authority early to understand allowed approaches and documentation needed for approval.
Handover and homeowner education
Before turning over the building, provide a simple packet with equipment manuals, warranty information, a map of shutoffs, and routine maintenance recommendations. Walk the homeowner through emergency shutoff procedures and show them where the water meter, main shutoff, and appliance service valves are located.
Teach basic maintenance steps: how to test shutoff valves, how to clear a simple trap, how to check the water heater pressure relief valve safely, and when to call a professional. A little education reduces panic calls for issues that are easy to resolve.
On one home I finished, leaving a labeled map of valves and an illustrated quick-start guide for the water heater saved the new owners several hours on their first weekend and earned a warm referral.
Checklist for a successful residential plumbing project
Use this checklist to keep projects on track. It covers permit, planning, materials, and verification steps that often cause delays when overlooked.
- Obtain permits and review local code amendments.
- Verify incoming water pressure and quality (test if needed).
- Coordinate rough-in locations with framing and cabinetry.
- Select materials and order long-lead items early.
- Install supply and DWV rough-in; place cleanouts and vents per code.
- Pressure-test supply and water-test DWV before insulation/finish.
- Install fixtures, test all functions, and commission hot water system.
- Provide homeowner with manuals, maps, and maintenance instructions.
When to call a professional
Simple tasks like replacing a faucet cartridge or clearing a minor drain are reasonable DIY projects for many homeowners. However, move to a professional for rough-in work, gas connections, complex venting, or when code compliance and warranty of the work are critical.
A licensed plumber brings knowledge of local codes, access to specialized tools, and experience that prevents expensive mistakes. I always recommend hiring a pro for gas water heaters, tankless installations, and any work that requires a permit to ensure inspection and safe operation.
Even if you plan to DIY portions of a remodel, consult a licensed plumber early. Their input on routing, trap locations, and fixture compatibility often avoids rework and hidden costs.
Plumbing is a system of trade-offs: material choices, routing, venting, and equipment selection all influence cost, reliability, and performance. Thinking ahead, coordinating with other trades, and testing thoroughly before finishes go on will spare headaches later. With careful planning and attention to the basics outlined here, a residential plumbing system will serve the occupants quietly and efficiently for years.
